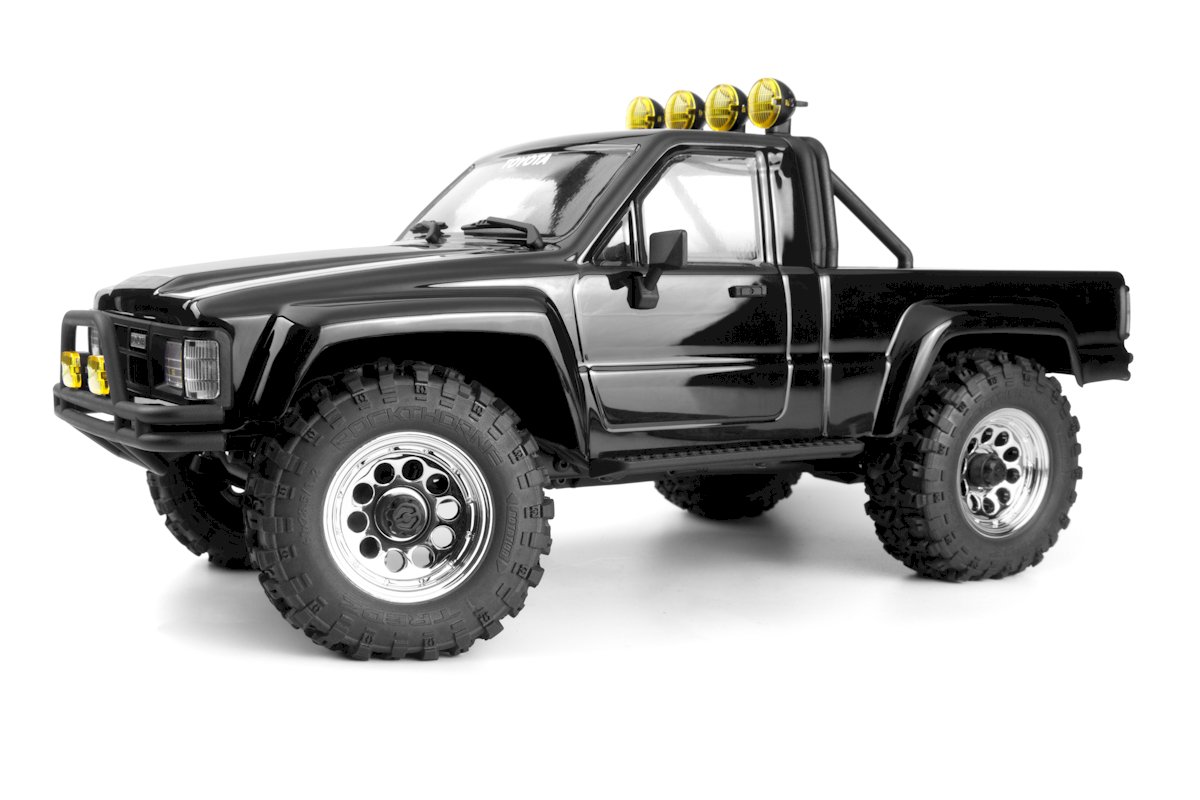

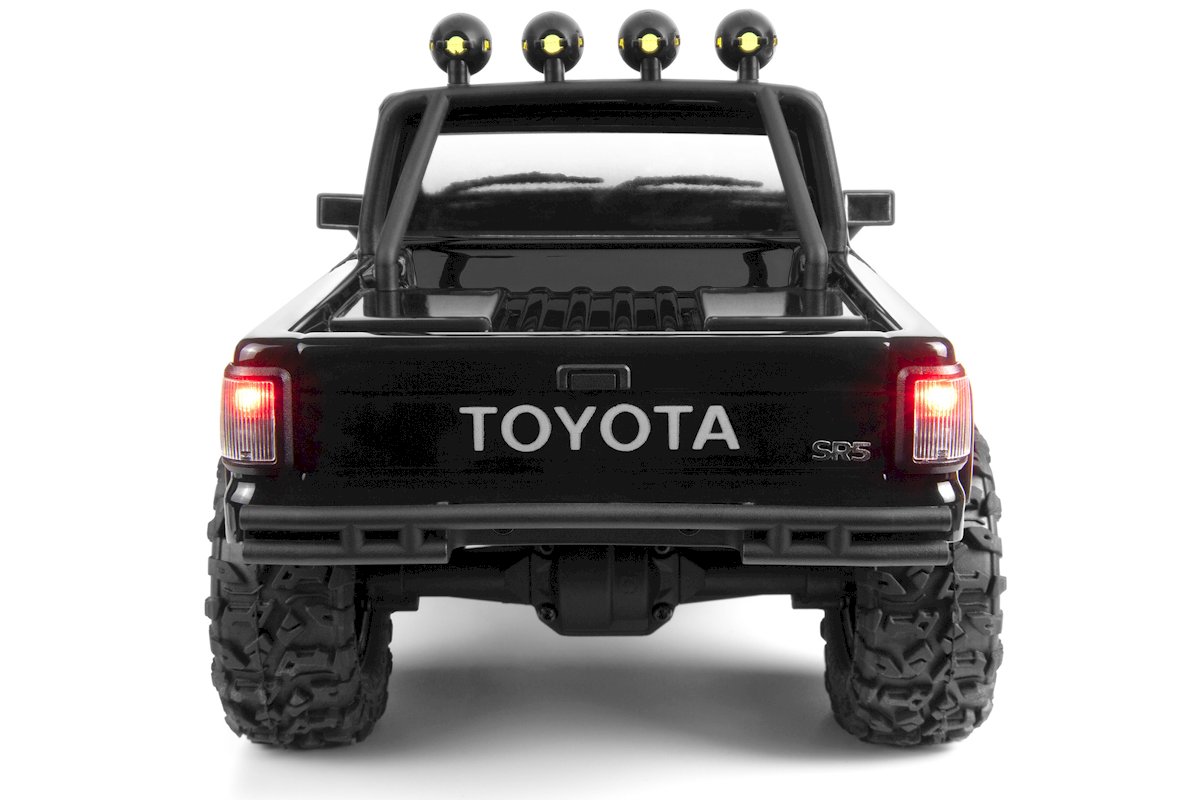

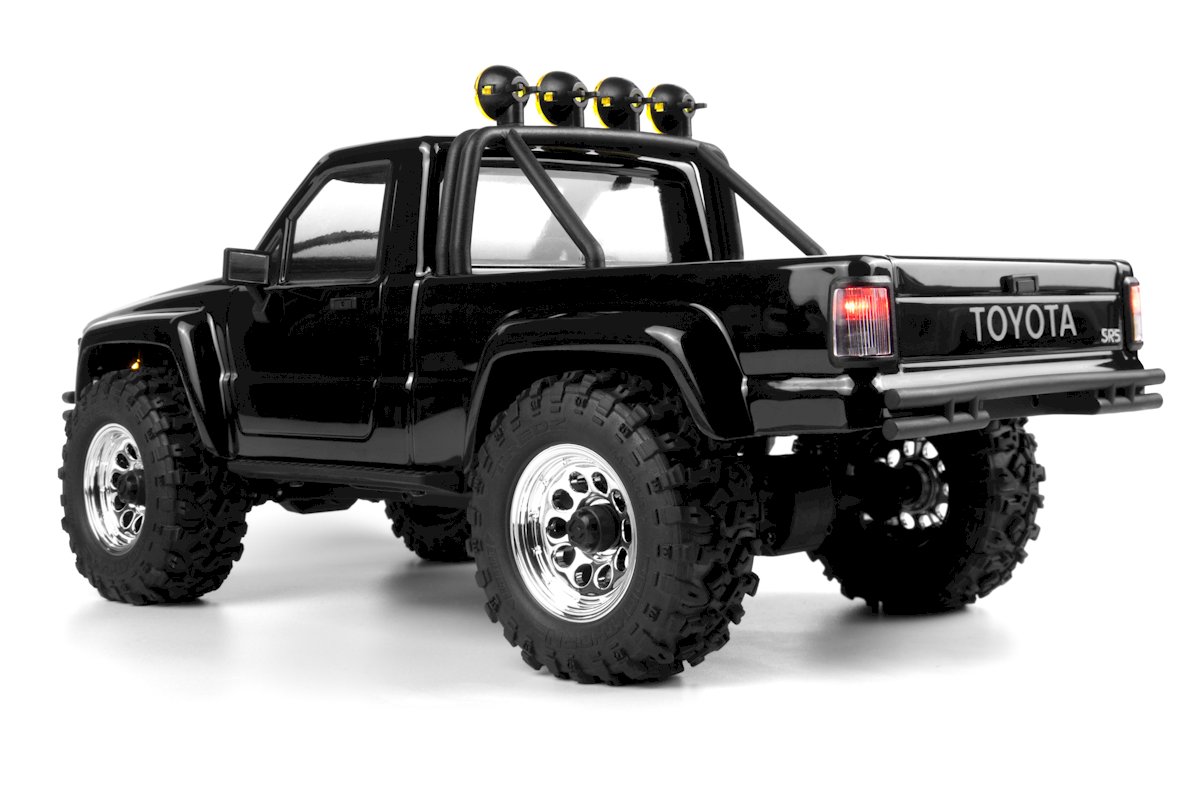

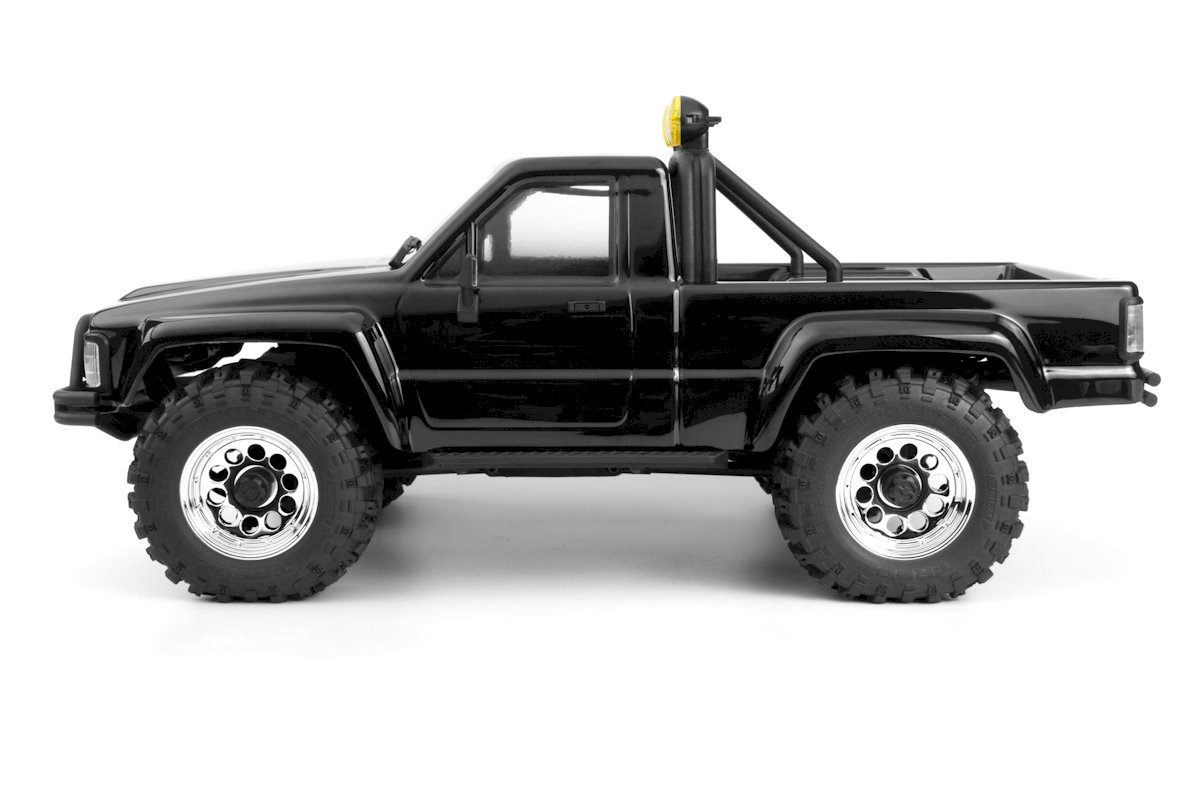

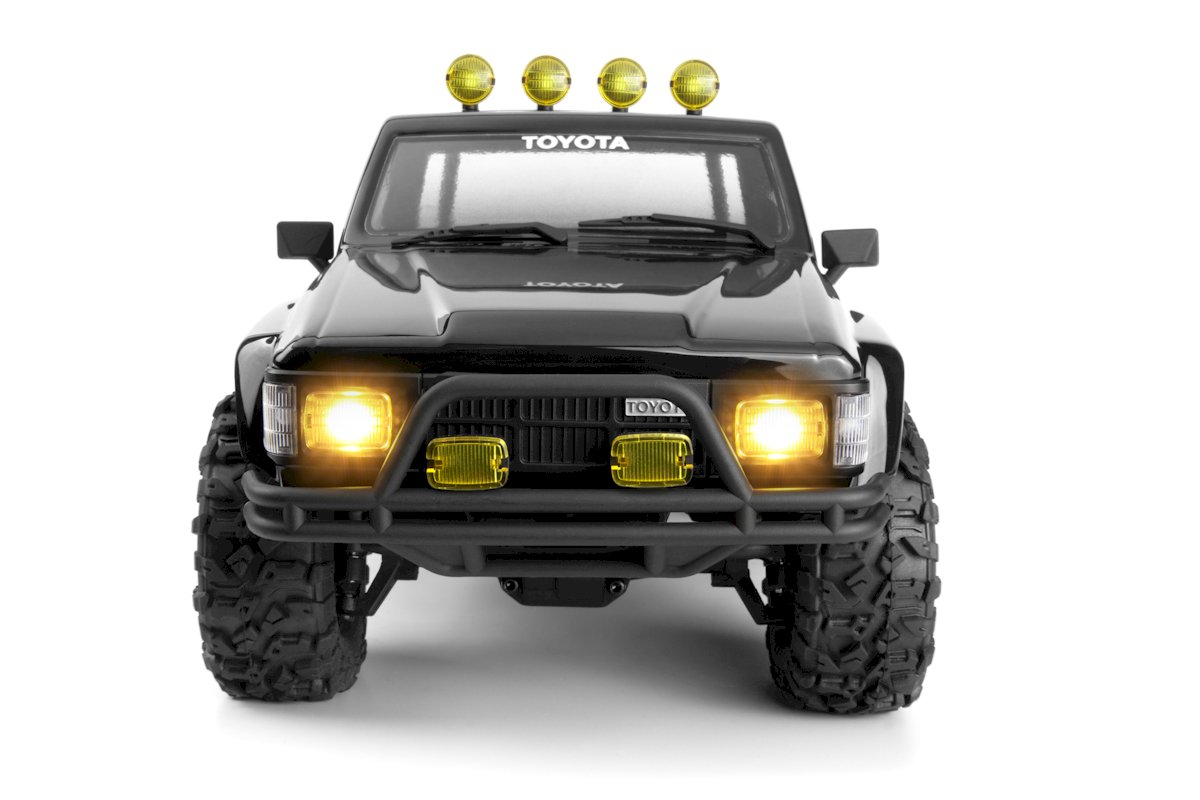

Venture18 1985 Toyota Hilux SR5 - Black
TOP
Features
- Factory-assembled & pre-painted electric-powered full-time 4WD 1/18 scale off-road truck
- Hand-painted polycarbonate officially licensed Toyota Hilux SR5 body
- Feature-packed body details including rollbar, grills, functional side mirrors and more
- Clipless body mounting
- Servo-operated 2-speed transmission
- Front and rear scale appropriate bumpers
- Adjustable rock rail side sliders help the truck get over tough obstacles
- Formed steel C-channel chassis rails
- Front universal driveshafts
- All-metal gear drivetrain for extreme durability
- Telescopic universal driveshafts to front and rear differentials
- Axles feature small diff case "pumpkin" size for best possible ground clearance
- Locked differentials for superb off-road climbing traction
- 7mm hex hubs to fit a wide variety of available crawler wheels
- Shock towers have multiple shock mounting positions
- 20 deg caster and 45 deg steering angle
- 4-link front rear suspension system
- Oil-filled aluminum-capped coilover shock absorbers
- Adjustable threaded shock bodies for quick ride height changes
- AMS (Axle Mounted Servo)
- All-terrain Rockthorn 1.2" soft S-Compound tires with chunky tread blocks
- Beadlock "Steely" style CS-10 1.2 inch wheels
- HPI Micro Crawler Motor 55T (180 Size)
- HPI SRL-706 3-in-1 10A electronic speed control, receiver and light controller
- HPI SD-01WR Micro Servo (6.0V/1kg/Plastic Geared)
- HPI TF-706 2.4GHz radio system with thumbstick control
- Includes 600mAh 7.4V LiPo battery and USB charger
- Only requires 4 AA batteries for radio transmitter
Specification
DIMENSIONS
- Length: 272mm
- Width: 127mm
- Height: 125.6mm with Rollbar Lights, (depending on tire choice and suspension settings)
- Wheelbase: 155.4mm
WEIGHT
- Running weight: 0.50kg
- Weight without battery: 0.47kg
CAPABILITY
- Break-over angle: 55 deg
- Approach angle: 50.5 deg
- Departure angle: 44.8 deg
- Max climb angle: 57 deg
- Max tilt angle: 43 deg
- Axle articulation: 25.5 deg
- Ground clearance 28.7mm
- Axle ground clearance 17mm
GEARING
- Transmission gearing: low Gear - 81.44:1, High Gear 20.36:1
- Axle gearing: 2.54:1
